    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  hoom Wed Aug 08, 2018 9:19 pm

    Was going to mention that, Charly shows a 5th under construction Admiral Yumashev but I don't believe it was laid down & the order has presumably been cancelled.
    Luq man
    Luq man


    Posts : 67
    Points : 69
    Join date : 2016-03-26
    Location : The Netherlands

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  Luq man Fri Aug 10, 2018 10:17 am

    Gas turbine engines (GTE) for the last two frigates of project 22350, Admiral Golovko and Admiral Isakov are ready. This Mil.Press FlotProm was informed by a high-ranking source in the industry. According to him, these GTE are completely domestic and built on the Rybinsk "Saturn".

    The power installation of the ships will be equipped with gearboxes produced by the St. Petersburg "Star". A source in the company told the journalist that the units are not yet ready, but the current leadership of the "Star" is in constant contact with the Rybinsk "Saturn". On July 28, during the ceremony of handing over the Navy of the head frigate of project 22350 Admiral Gorshkov, the head of the United Shipbuilding Corporation Alexei Rakhmanov told Mil.Press FlotProm that the GTE for the last two frigates of the series would be domestic. He also expressed confidence that these ships will be built on time.

    Prior to the termination of military-technical cooperation with Ukraine, Severnaya Verf managed to obtain complete sets of energy for the main and first production ships of Project 22350. The following frigate for the series, Admiral Golovko (plant number 923), was not fully equipped. "ODK-Saturn" led the development of domestic shipboard GTE from 2014. In April 2017, the enterprise demonstrated a sample of an M90FP unit with a capacity of 20.2 MW. The declared efficiency of the turbine was 36% compared to 32% for the analog of the Ukrainian production. The first two units of Severnaya Verf are planned to be delivered by the end of 2018.

    https://flotprom.ru/2018/%D0%A1%D0%B5%D0%B2%D0%B5%D1%80%D0%BD%D0%B0%D1%8F%D0%92%D0%B5%D1%80%D1%84%D1%8C41/
    avatar
    hoom


    Posts : 2352
    Points : 2340
    Join date : 2016-05-06

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  hoom Thu Aug 23, 2018 4:34 pm

    Gorshkov bridge from flag raising ceremony pics http://kuleshovoleg.ru/?p=2431
    Project 22350: Admiral Sergei Gorshkov - Page 40 44134906311_cbe9a509e5_b
    avatar
    hoom


    Posts : 2352
    Points : 2340
    Join date : 2016-05-06

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  hoom Fri Aug 24, 2018 5:41 pm

    From Flotprom coverage of UAC booth at Army 2018 https://flotprom.ru/2018/%D0%A4%D0%BE%D1%80%D1%83%D0%BC%D0%90%D1%80%D0%BC%D0%B8%D1%8F94/

    Is this just the export version 22356 we've seen before with Shtil-1?
    Pics are labeled as 22356 but I don't recall seeing the big engagement radar on the hangar previously & the freeboard seems higher  Suspect
    Project 22350: Admiral Sergei Gorshkov - Page 40 %D0%9C%D0%BD%D0%BE%D0%B3%D0%BE%D1%86%D0%B5%D0%BB%D0%B5%D0%B2%D0%BE%D0%B9%20%D1%84%D1%80%D0%B5%D0%B3%D0%B0%D1%82%20%D0%BF%D1%80%D0%BE%D0%B5%D0%BA%D1%82%D0%B0%2022356%202
    Project 22350: Admiral Sergei Gorshkov - Page 40 %D0%9C%D0%BD%D0%BE%D0%B3%D0%BE%D1%86%D0%B5%D0%BB%D0%B5%D0%B2%D0%BE%D0%B9%20%D1%84%D1%80%D0%B5%D0%B3%D0%B0%D1%82%20%D0%BF%D1%80%D0%BE%D0%B5%D0%BA%D1%82%D0%B0%2022356%203
    Project 22350: Admiral Sergei Gorshkov - Page 40 %D0%9C%D0%BD%D0%BE%D0%B3%D0%BE%D1%86%D0%B5%D0%BB%D0%B5%D0%B2%D0%BE%D0%B9%20%D1%84%D1%80%D0%B5%D0%B3%D0%B0%D1%82%20%D0%BF%D1%80%D0%BE%D0%B5%D0%BA%D1%82%D0%B0%2022356%204


    Edit: nah, this was exhibited previously in 2014
    Project 22350: Admiral Sergei Gorshkov - Page 40 Rosoboronexport_presents_its_new_naval_products_640_02
    Its got an interesting VLS layout
    Project 22350: Admiral Sergei Gorshkov - Page 40 1536646_original


    Edit2: Ah but it has been previously displayed with Shtil-1 & MR90 firecontrol rather than the big one, I'm not misremembering angel

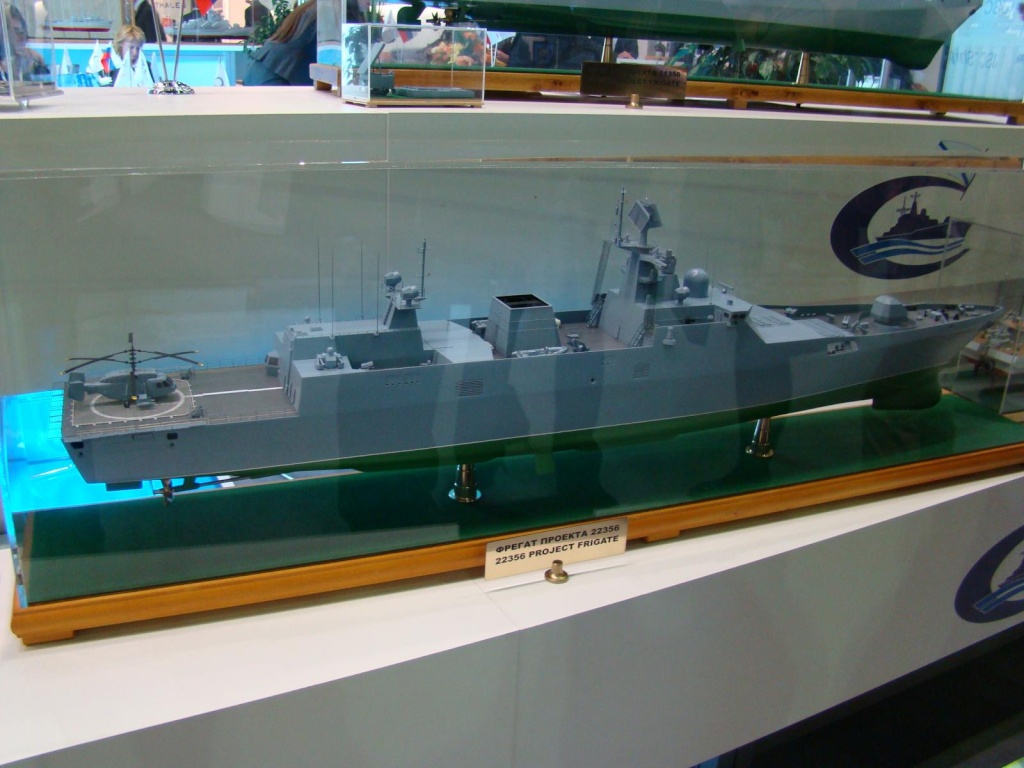

    Project 22350: Admiral Sergei Gorshkov - Page 40 22356_11
    Isos
    Isos


    Posts : 11602
    Points : 11570
    Join date : 2015-11-06

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  Isos Fri Aug 24, 2018 6:05 pm

    What are the big VLS on the 2nd picture of your first edit ?.

    It's like 4 times bigger than UKSK.
    Big_Gazza
    Big_Gazza


    Posts : 4896
    Points : 4886
    Join date : 2014-08-25
    Location : Melbourne, Australia

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  Big_Gazza Fri Aug 24, 2018 11:25 pm

    That is a 1x UKSK.  The 2x8 SAM bins forward of the bridge (where the 22350 has its 2x UKSK) look like Shtil to me, though the VLS bin arrangement is different to the one on the 11356s.

    The 3x VLS bins fwds of the UKSK look to be Redut, same bin config as installed to the 22350.
    LMFS
    LMFS


    Posts : 5162
    Points : 5158
    Join date : 2018-03-03

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  LMFS Sat Aug 25, 2018 1:44 am

    Big_Gazza wrote:That is a 1x UKSK.  The 2x8 SAM bins forward of the bridge (where the 22350 has its 2x UKSK) look like Shtil to me, though the VLS bin arrangement is different to the one on the 11356s.

    The 3x VLS bins fwds of the UKSK look to be Redut, same bin config as installed to the 22350.

    The higher VLS cells (the ones close to the bridged) are for Kalibr IMHO, the rest for SAMs... but don't know what models exactly Very Happy

    Just a matter of length of the missiles. CMs are way longer than SAMs.
    avatar
    hoom


    Posts : 2352
    Points : 2340
    Join date : 2016-05-06

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  hoom Sat Aug 25, 2018 1:48 am

    What are the big VLS on the 2nd picture of your first edit ?.
    Indeed.
    With an S-300FM style engagement radar I presume its S-300 VLS, to which the semi-mythical designation Krepost may apply.

    The size is very problematic if it can't also carry quad 9M96 or something.

    But presumably Krepost is replaced by UKSK-M
    AlfaT8
    AlfaT8


    Posts : 2488
    Points : 2479
    Join date : 2013-02-02

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  AlfaT8 Sat Aug 25, 2018 4:15 pm

    Isos wrote:What are the big VLS on the 2nd picture of your first edit ?.

    It's like 4 times bigger than UKSK.

    Considering the Radar in the back most likely a 92N6E "Grave Stone", it's probably the navalized S-400 system.
    Granted without the 400km range missiles, since that requires the 91N6E "Big Bird".
    BTW, is there a naval version of the Big Bird?
    Hole
    Hole


    Posts : 11121
    Points : 11099
    Join date : 2018-03-24
    Age : 48
    Location : Scholzistan

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  Hole Sat Aug 25, 2018 5:04 pm

    Grave Stone is fire control radar.
    Big Bird is early warning radar.
    Big_Gazza
    Big_Gazza


    Posts : 4896
    Points : 4886
    Join date : 2014-08-25
    Location : Melbourne, Australia

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  Big_Gazza Sat Aug 25, 2018 11:52 pm

    LMFS wrote:The higher VLS cells (the ones close to the bridged) are for Kalibr IMHO

    Hmm... on second thoughts you're right, but why haven't the model builders used hatch covers that resemble the UKSK? A little sloppy for what should be a promotional model....
    AlfaT8
    AlfaT8


    Posts : 2488
    Points : 2479
    Join date : 2013-02-02

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  AlfaT8 Sun Aug 26, 2018 12:32 am

    Hole wrote:Grave Stone is fire control radar.
    Big Bird is early warning radar.

    Yes, i was assuming that the radars on the superstructure is the search radar, while Gravestone handles the targeting, else its the 96L6, which i doubt.
    LMFS
    LMFS


    Posts : 5162
    Points : 5158
    Join date : 2018-03-03

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  LMFS Sun Aug 26, 2018 1:01 am

    Big_Gazza wrote:
    LMFS wrote:The higher VLS cells (the ones close to the bridged) are for Kalibr IMHO

    Hmm...  on second thoughts you're right, but why haven't the model builders used hatch covers that resemble the UKSK? A little sloppy for what should be a promotional model....
    We are talking about these right?

    Project 22350: Admiral Sergei Gorshkov - Page 40 Detail10

    They are not very detailed but otherwise similar to the UKSK in other 22350s:



    Project 22350: Admiral Sergei Gorshkov - Page 40 22350_10
    Big_Gazza
    Big_Gazza


    Posts : 4896
    Points : 4886
    Join date : 2014-08-25
    Location : Melbourne, Australia

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  Big_Gazza Sun Aug 26, 2018 7:27 am

    LMFS wrote:We are talking about these right?
    Yep. What I don't get is why the modeller used accurately styled VLS covers for the SAMs but some BS generic ones for the UKSK. Its inaccurate and causes confusion. Oh well, such is life.
    avatar
    hoom


    Posts : 2352
    Points : 2340
    Join date : 2016-05-06

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  hoom Fri Sep 07, 2018 5:12 am

    Apparently Gorshkov left for the North on 1st Sept.

    And a beautyshot I love you
    Project 22350: Admiral Sergei Gorshkov - Page 40 06-6642885-gorshkov
    avatar
    hoom


    Posts : 2352
    Points : 2340
    Join date : 2016-05-06

    Project 22350: Admiral Sergei Gorshkov - Page 40 Empty Re: Project 22350: Admiral Sergei Gorshkov

    Post  hoom Sun Sep 09, 2018 12:26 am

    Arrived at Severomorsk https://bmpd.livejournal.com/3335152.html
    Project 22350: Admiral Sergei Gorshkov - Page 40 5877260_original
    Project 22350: Admiral Sergei Gorshkov - Page 40 5877759_original
    Project 22350: Admiral Sergei Gorshkov - Page 40 5877959_original

    -------
