Russian Electronic Warfare Systems
thegopnik- Posts : 1832
Points : 1834
Join date : 2017-09-20
Isos- Posts : 11605
Points : 11573
Join date : 2015-11-06
No such weapon was used.
Air defence missiles fly very fast. For such an airborne system to find the missile, and burn it with micro waves it is impossible.
Radar are sending strong signals and they can at best burn your testicules if you are in front of the plane on the ground.
EW just jamm the frequency to create fake targets or make impossible to determine the range by adding signals to saturate the doppler effect. But burning a missile with microwaves is still impossible.
Air defence missiles fly very fast. For such an airborne system to find the missile, and burn it with micro waves it is impossible.
Radar are sending strong signals and they can at best burn your testicules if you are in front of the plane on the ground.
EW just jamm the frequency to create fake targets or make impossible to determine the range by adding signals to saturate the doppler effect. But burning a missile with microwaves is still impossible.
GarryB likes this post
GarryB- Posts : 40579
Points : 41081
Join date : 2010-03-30
Location : New Zealand
I would guess it interferes in the missiles proximity fuse... making the missile think it is closer to the target plane than it actually is and exploding early.
Various anti artillery systems do the same to make their proximity fuses detonate the rockets and shells too high up in the air to do damage.
Or it might just break lock and cause the missiles to self destruct.
The R-73 missiles they use have a laser proximity fuse, the sidewinders from that F-15 probably a radio fuse.
Various anti artillery systems do the same to make their proximity fuses detonate the rockets and shells too high up in the air to do damage.
Or it might just break lock and cause the missiles to self destruct.
The R-73 missiles they use have a laser proximity fuse, the sidewinders from that F-15 probably a radio fuse.
flamming_python and lancelot like this post
Isos- Posts : 11605
Points : 11573
Join date : 2015-11-06
Modern missiles have laser fuzes. Unjammable.
Podlodka77- Posts : 2589
Points : 2591
Join date : 2022-01-06
Location : Z
20.10.2022
TASS
The Armed Forces of the Russian Federation use complexes in the SMO capable of jamming the phones of the Armed Forces of Ukraine within a radius of up to 30 km

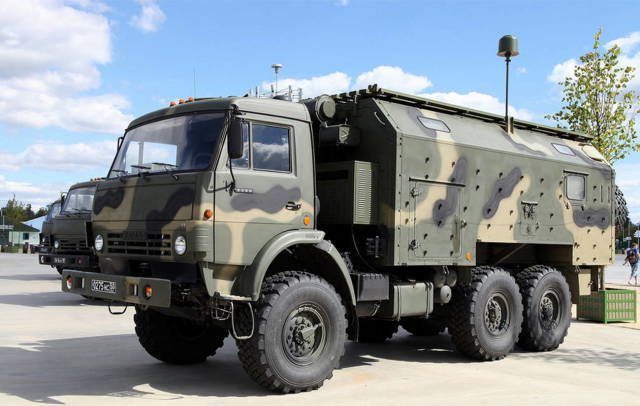

Automated electronic warfare complex "Leer-3".
Image source: invoen.ru
The system can not only interfere, but also send SMS, the defense department added.
MOSCOW, 19 October. /TASS/. Russian military personnel use the Leer-3 complex, which helps to jam communications of the Armed Forces of Ukraine within a radius of up to 30 km for tens of hours. This was reported on Wednesday to journalists in the Russian Defense Ministry.
The Leer-3 complex suppresses GSM communications with the help of interference transmitted by the Orlan-10 drone with special radio signal transmitters. Such equipment blocks the operation of any devices in certain ranges, while completely cellular networks are not blocked.
"The complex can jam the phones of the Armed Forces of Ukraine within a radius of up to 30 kilometers, while the drone is in the sky, for tens of hours. More than enough for our units to approach the specified area," the department noted, adding that the complex can suppress about two thousand subscribers at once.
The system can not only interfere, but also send SMS. "The goals of mass mailings are different. In addition to psychological pressure on the fighters of the Armed Forces of Ukraine, it is often necessary to alert civilians in Ukraine," the Russian Defense Ministry explained.
However, the main task for the Leer-3 complexes is to detect a mass concentration of cellular subscribers in forests, along riverbeds, in village sheds and other uncharacteristic places for this. "The coordinates of such clusters are immediately transmitted to the headquarters for further decisions," the defense department concluded.
TASS
The Armed Forces of the Russian Federation use complexes in the SMO capable of jamming the phones of the Armed Forces of Ukraine within a radius of up to 30 km
Automated electronic warfare complex "Leer-3".
Image source: invoen.ru
The system can not only interfere, but also send SMS, the defense department added.
MOSCOW, 19 October. /TASS/. Russian military personnel use the Leer-3 complex, which helps to jam communications of the Armed Forces of Ukraine within a radius of up to 30 km for tens of hours. This was reported on Wednesday to journalists in the Russian Defense Ministry.
The Leer-3 complex suppresses GSM communications with the help of interference transmitted by the Orlan-10 drone with special radio signal transmitters. Such equipment blocks the operation of any devices in certain ranges, while completely cellular networks are not blocked.
"The complex can jam the phones of the Armed Forces of Ukraine within a radius of up to 30 kilometers, while the drone is in the sky, for tens of hours. More than enough for our units to approach the specified area," the department noted, adding that the complex can suppress about two thousand subscribers at once.
The system can not only interfere, but also send SMS. "The goals of mass mailings are different. In addition to psychological pressure on the fighters of the Armed Forces of Ukraine, it is often necessary to alert civilians in Ukraine," the Russian Defense Ministry explained.
However, the main task for the Leer-3 complexes is to detect a mass concentration of cellular subscribers in forests, along riverbeds, in village sheds and other uncharacteristic places for this. "The coordinates of such clusters are immediately transmitted to the headquarters for further decisions," the defense department concluded.
GarryB, franco, George1, zepia, zardof, thegopnik, Hole and Broski like this post
lancelot- Posts : 3184
Points : 3180
Join date : 2020-10-17
https://rostec.ru/news/rostekh-predstavil-dalnoboynyy-kompleks-dlya-borby-s-roem-dronov/
Rostec presented a long-range complex to combat a swarm of drones
March 16, 2023
Ruselectronics holding of the Rostec State Corporation has completed the development of an anti-drone system capable of suppressing drone control at a distance of up to 5 km. The equipment allows you to “jam” several channels at the same time, which ensures the protection of objects from attacks by several UAVs at the same time, including those flying from different directions.
The new complex "Serp-VS5", developed by the Research Institute "Vector" of the holding "Ruselectronics", operates in five frequency bands - from 900 MHz to 5.8 GHz. This allows you to use it not only against civilians, but also against special aircraft.
The equipment suppresses the drone control channel, breaks communication with the operator, disables navigation equipment, disorients the drone in space and disrupts the flight mission. The system suppresses GPS, GLONASS, Beidou signals (in the L1, L2, L5 bands), and also breaks drone control over Wi-Fi.
The complex "sees" UAV-violators in the sector of 360 degrees along the horizontal axis. The function of dividing the viewing angle into sectors with independent modes of operation allows the use of other drones, if necessary, during the operation of the complex, for example, to monitor power transmission lines or pipelines. Communication with its own control center is carried out via an Ethernet network.
“Today, for the first time, we demonstrated the operation of the Serp complex of a new modification at the test site. Providing anti-drone protection is becoming an integral part of the security system of any objects. The equipment can work effectively both autonomously and as part of complex systems. The development of the anti-UAV line allows us to cover the widest possible pool of potential customers. Today we are seeing the greatest interest from companies that have industrial facilities of various profiles: from manufacturing enterprises to critical infrastructure facilities located in dense urban areas,” said Andrey Sorokin, Deputy General Director for Business Development at Vector Research Institute.
Previously, the Research Institute "Vector" brought to the market the "Serp-VS" complex with a range of 3 km in two frequency bands.
GarryB, franco, psg, zardof, Hole, Broski and Belisarius like this post
Kiko- Posts : 3901
Points : 3977
Join date : 2020-11-11
Age : 75
Location : Brasilia
I suppose this is here:
‘Krasukha’: Russia's New Unrivalled Electronic Warfare System, by Oleg Burunov for Sputnikglobe.com. 09.16.2023.
The special military operation zone recently witnessed the power of the Krasukha-S4 self-propelled electronic warfare (EW) system, as showcased in footage released by the Russian MoD. How does this system work and how effective is it? Sputnik explains.
What's Krasukha Needed For?
The Krasukha-S4 is created to render spy satellites, ground-based radars, and airborne systems completely ineffective. It achieves this by generating jamming signals that target core radar frequencies and other radio-emitting sources.
The main purpose of the Krasukha system is to protect command posts, troops and air defenses from aerial reconnaissance and high-precision weapons. The EW system closely interacts with air defense systems, which destroy an enemy object after receiving its location from Krasukha-S4.
In addition, the system successfully engages unmanned aerial vehicles (UAVs) flying at extremely low altitudes. Krasukha's software and hardware systems have the ability to disrupt a drone's on-board equipment, effectively rendering the UAV blind and helpless. This forces the aircraft to climb to higher altitudes, placing it within the reach of the Russian air defenses, which then annihilate the target.
Unique Characteristics
According to Russian expert Roman Nasonov, Krasukha-S4 is the most effective system in its class. It is capable of creating radio jamming in a wide range of frequencies, without restrictions in azimuth and elevation.
The system can effectively engage any air target. The range of a Krasukha-S4 complex, consisting of two vehicles, is more than 300 kilometers (186 miles).
Krasukha-S4's wheelbase is a four-axle Kamaz all-terrain vehicle, so the mobile complex can operate in any area, at temperatures ranging from minus 50C to plus 50C degrees.
Start of Mass Production
Krasukha-S4, developed by the Radioelectronic Technologies Concern KRET, a holding company under the Russian state-owned Rostec Corporation, was created in 2009 and went into mass production for its electronic warfare system in 2011.
After a span of two years, the Russian Ministry of Defense (MoD) acquired the inaugural batch of Krasukha-S4 systems. This technology, as highlighted by KRET, possesses the capability to be utilized for airborne warning and control systems (AWACS) as well.
Use in Special Op Zone
The MoD recently unveiled a video showcasing the Krasukha-S4, jamming a reconnaissance drone belonging to the Ukrainian Armed Forces (UAF). This incident took place within the Russian territory of the special military operation zone in Ukraine.
The ministry also quoted a crew member of the Krasukha-S4 vehicle who stated that "throughout the special operation, the ES system proves its effectiveness." He added that they implement their “combat mission quite successfully.”
In addition to UAF drones, the Krasukha-S4 effectively countered enemy ballistic missiles and aircraft, the crew member pointed out.
https://sputnikglobe.com/20230916/krasukha-russias-new-unrivalled-electronic-warfare-system-1113415601.html
GarryB, franco, flamming_python, zardof, Hole and Broski like this post
JohninMK- Posts : 15669
Points : 15810
Join date : 2015-06-16
Location : England
Not sure if this video is new.
franco likes this post
George1- Posts : 18528
Points : 19033
Join date : 2011-12-22
Location : Greece
GarryB, medo, zardof and Hole like this post
thegopnik- Posts : 1832
Points : 1834
Join date : 2017-09-20
GarryB, Big_Gazza and Hole like this post
PhSt- Posts : 1494
Points : 1500
Join date : 2019-04-01
Location : Canada
https://rutube.ru/video/782eede2ec0458464229d789fd1a46ae/
